App

Overview

The Slate Cache is a light-weight LRU ( Least Recently Used ) Cache for both Android and Server. While there are many comprehensive Cache solutions available for the JVM, this is designed to be an in-memory light-weight cache with an emphasis on diagnostics and async functionality leveraging Kotlin Coroutines and Channels.

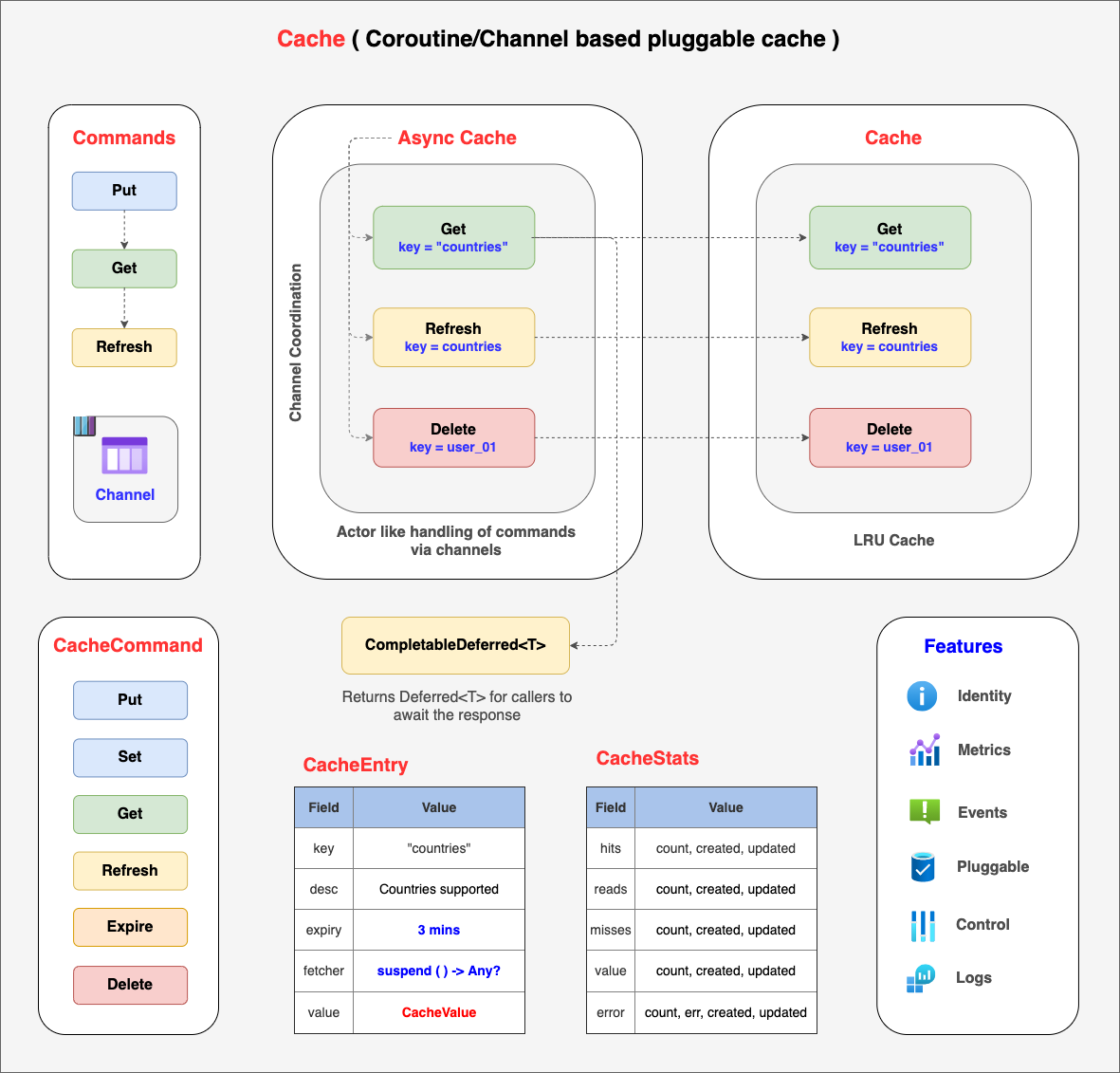

Diagram

A high-level diagram of the concepts in this component

Goals

Goal	Description
1. Light-Weight	Simple, light-weight with default implementations for sync and async based Caches.
2. Diagnostics	Provides a reasonable level of diagnostics and cache metrics
3. Coroutines	Async based cache leverages Coroutines / Channels for write operations

Status

This component is currently stable. Future versions will include support for:

Feature	Status	Description
Events	Upcoming	An event emitter for changes to cache
Refresh	Upcoming	Automatic / scheduled refresh of cache items
Stats	Upcoming	Enhanced stats to capture evictions/clearing of cache

Install

    repositories {
        // other repositories
        maven { url  "http://dl.bintray.com/codehelixinc/slatekit" }
    }

    dependencies {
        // other dependencies ...

        compile 'com.slatekit:slatekit-cache:1.0.0'
    }

Sources

Jar	slatekit.cache.jar
Package	slatekit.cache
Sources	slatekit-cache
Example	Example_Cache.kt
Version
License
Requires	See build.gradle for more info.

Example


    import slatekit.cache.*

    // SimpleCache is the underlying Cache implementation
    val raw:Cache = SimpleCache(CacheSettings(10))

    // Synchronized cache wraps the raw cache
    // NOTE: Async cache via coroutines/channels avialable (see docs below)
    val cache:SyncCache = SimpleSyncCache(raw)

    // Writes
    // 1. Put new entry ( using a function to fetch )
    cache.put("promos", "promotion codes", 300) { listOf("p1", "p2") }

    // 2. Force a refresh
    cache.refresh("promos")

    // Reads
    // 1. Get existing cache item
    val c1 = cache.get<List<Country>>("countries")

    // 2. Get existing cache item or load it if expired
    val c2 = cache.getOrLoad<List<String>>("promos")

    // Stats
    cache.stats().forEach {
        println("key    : " + it.key)

        println("expiry.start   : " + it.expiry.started.toStringUtc())
        println("expiry.seconds : " + it.expiry.seconds )
        println("expiry.expires : " + it.expiry.expires.toStringUtc())

        println("hits.count     : " + it.hits.count)
        println("hits.time      : " + it.hits.timestamp?.toStringUtc() )

        println("value.created  : " + it.value.created?.toStringUtc() )
        println("value.updated  : " + it.value.updated?.toStringUtc() )
        println("value.applied  : " + it.value.applied)

        println("error.created  : " + it.error.created?.toStringUtc() )
        println("error.updated  : " + it.error.updated?.toStringUtc() )
        println("error.applied  : " + it.error.applied)
        println("\n")
    }

Guide

Name	Description	More
1. Usage	Usage of the features	more
2. Stats	Gettign stats and cache diagnostics	more
3. Sync	How to convert raw text into parsed parameters	more
4. Async	Working with parsed commands as CLI Requests	more
5. Load	Performance and load metrics	more

Usage

Showing simple usage of a synchronous cache implementation all operations on cache are using the @synchronized annotation on methods.

    import slatekit.cache.*

    // SimpleCache is the underlying Cache implementation
    val raw:Cache = SimpleCache(CacheSettings(10))

    // Synchronized cache wraps the raw cache
    // NOTE: Async cache via coroutines/channels avialable (see docs below)
    val cache:SyncCache = SimpleSyncCache(raw)

    // Writes: Both sync and async versions have these put/set/refresh methods
    // 1. Put new entry ( using a function to fetch )
    cache.put("promos", "promotion codes", 300) { listOf("p1", "p2") }

    // 2. Update existing entry with value
    cache.set("promos", listOf("p1", "p2"))

    // 3. Force a refresh
    cache.refresh("promos")

    // Reads:
    // NOTES:
    // 1. The sync version returns the value
    // 2. The async version returns a Deferred<T>
    val c1 = cache.get<List<Country>>("countries")

    // 2. Get existing cache item or load it if expired
    val c2 = cache.getOrLoad<List<String>>("promos")

    // 3. Get after refreshing it first
    val c3 = cache.getFresh<List<String>>("promos")

    println(c1)
    println(c2)
    println(c3)

Back to features Back to top

Stats

The main difference in the stats for this component is that both the created, updated timestamps are maintained while also typically keeping track of the counts of accesses, hits, misses.

Term	Desc	Example	Ratio
Accesses	Number of times a cache item is accessed	100	n/a
Hits	Number of times a cache item is accessed and it exists	80	.8
Misses	Number of times a cache item is accessed but does not exist	20	.2


    // ... setup ( see above )
    cache.stats().forEach {
        println("key    : " + it.key)

        println("expiry.start   : " + it.expiry.started.toStringUtc())
        println("expiry.seconds : " + it.expiry.seconds )
        println("expiry.expires : " + it.expiry.expires.toStringUtc())

        println("access.count     : " + it.reads?.count)
        println("access.time      : " + it.reads?.timestamp?.toStringUtc() )

        println("hits.count     : " + it.hits.count)
        println("hits.time      : " + it.hits.timestamp?.toStringUtc() )

        println("misses.count     : " + it.misses?.count)
        println("misses.time      : " + it.misses?.timestamp?.toStringUtc() )

        println("value.created  : " + it.value.created?.toStringUtc() )
        println("value.updated  : " + it.value.updated?.toStringUtc() )
        println("value.applied  : " + it.value.applied)

        println("error.created  : " + it.error.created?.toStringUtc() )
        println("error.updated  : " + it.error.updated?.toStringUtc() )
        println("error.applied  : " + it.error.applied)
        println("\n")
    }

Back to features Back to top

Sync

Showing usage of a synchronous cache implementation SimpleAsyncCache. All operations on cache are using the @synchronized annotation on methods. Synchronouse caches are implemented using the SyncCache interface.

    import slatekit.cache.*

    // SimpleCache is the underlying Cache implementation
    val raw:Cache = SimpleCache(CacheSettings(10))

    // Synchronized cache wraps the raw cache
    // NOTE: Async cache via coroutines/channels avialable (see docs below)
    val cache:SyncCache = SimpleSyncCache(raw)

    // Writes
    // 1. Put new entry ( using a function to fetch )
    cache.put("promos", "promotion codes", 300) { listOf("p1", "p2") }

    // 2. Update existing entry with value
    cache.set("promos", listOf("p1", "p2"))

    // 3. Force a refresh
    cache.refresh("promos")

    // Reads
    // 1. Get existing cache item
    val c1 = cache.get<List<Country>>("countries")

    // 2. Get existing cache item or load it if expired
    val c2 = cache.getOrLoad<List<String>>("promos")

    // 3. Get after refreshing it first
    val c3 = cache.getFresh<List<String>>("promos")

    println(c1)
    println(c2)
    println(c3)

Back to features Back to top

Async

Async functionality is based on using Coroutines and Channels for writes. The async cache implementation is SimpleAsyncCache. Async caches are implemented using the AsyncCache interface. In this approach, concurrent writes are handling by creating a CacheCommand representing the operation and sending them to a channel to be handled sequentially. Reads are handling by returning a kotlin Deferred[T].


    import slatekit.cache.*

    val logger = LoggerConsole()
    val coordinator = ChannelCoordinator(logger, Paired(), Channel<CacheCommand>(Channel.UNLIMITED))
    val asyncCache: AsyncCache = SimpleAsyncCache(raw, coordinator)

    // Writes
    // 1. Put new entry ( using a function to fetch )
    asyncCache.put("promos", "promotion codes", 300) { listOf("p1", "p2") }

    // 2. Update existing entry with value
    asyncCache.set("promos", listOf("p1", "p2"))

    // 3. Force a refresh
    asyncCache.refresh("promos")

    // Reads
    // 1. Get existing cache item
    val a1 = asyncCache.get<List<Country>>("countries").await()

    // 2. Get existing cache item or load it if expired
    val a2 = asyncCache.getOrLoad<List<String>>("promos").await()

    // 3. Get after refreshing it first
    val a3 = asyncCache.getFresh<List<String>>("promos").await()

Back to features Back to top

Load

Performance and load docs coming soon

Back to features Back to top
